Dialogue UIs

This chapter explains how to set up dialogue UIs and bark UIs. The Dialogue System uses dialogue UIs to show interactive conversations and onscreen alert messages, and bark UIs to show barks. You can customize how each actor appears in UIs by adding a Dialogue Actor component.

Dialogue UI


The recommended way to set up a dialogue UI is to use the Dialogue System's Standard Dialogue UI. Alternatively, the Dialogue System can use Unity UI, TextMesh Pro, or NGUI and several other third party GUI systems, or you can add your own custom UI implementation using a simple C# interface.

Standard Dialogue UI

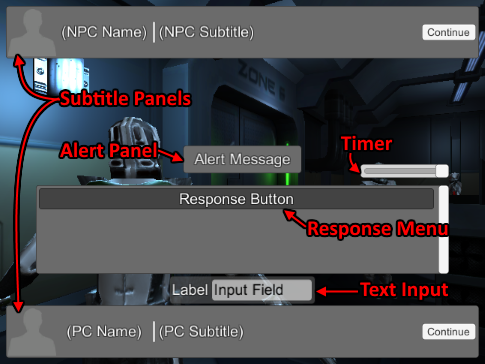

The Standard Dialogue UI is a set of components that manage the UI elements shown in the screenshot above. Those elements are:

  • Alert Panel: Shows alert messages.
  • Subtitle Panels: Shows actors' dialogue text.
  • Response Menu: Shows responses that the player can select.
  • Timer: Shows the countdown if the Dialogue Manager is configured for timed response menus.
  • Text Input: Reads text input from the player.

All UI elements can be repositioned and reskinned.

Standard Dialogue UI Prefabs

The easiest way to start is by assigning a prefab to the Dialogue Manager's Dialogue UI field. The Dialogue System includes a number of graybox templates, as well as finished, professionally designed UIs, located in Prefabs ► Standard UI Prefabs. The graybox templates are:

  • Basic: The default UI shown above.
  • Bubble: Displays subtitle panels and response menus in cartoon bubbles over actors' heads.
  • Focus: Fades in each line's speaker while fading out the other actor to 50% transparency.
  • Letterbox: Cinematic-style subtitles with black bars at the top and bottom of the screen.
  • VN: Traditional visual novel layout with larger portrait images above the subtitle/menu box.
  • WRPG: Traditional western RPG layout with a scrolling conversation log.

If you want to design your own layout, it's easiest to start with one of the gray-box templates that behave similarly. Add it to the Dialogue Manager's Canvas, reposition UI elements to your liking, and add replacement images.

Subtitle Panels & Menu Panels


A Standard Dialogue UI typically has one or more subtitle panels and menu panels.

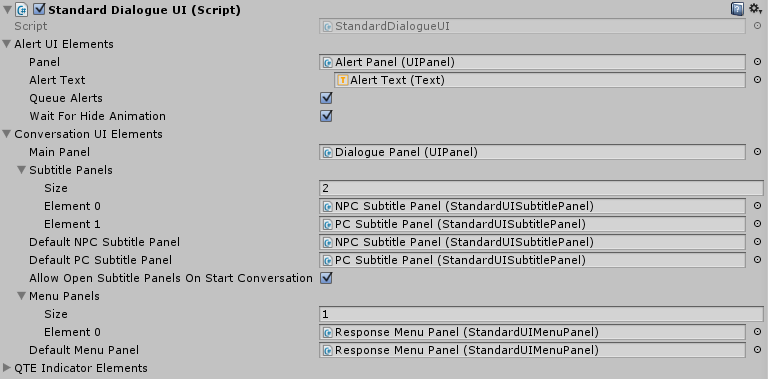

Assign subtitle panels to the Subtitle Panels list. Set Default NPC Subtitle Panel and Default PC Subtitle Panel to specify which panels to use by default for NPCs and the player. Actors that have Dialogue Actor components can specify to use a different panel from the default.

If Allow Open Subtitle Panels On Start Conversation is true, the Dialogue System will check all conversation participants to identify their subtitle panels. If any of those subtitle panels specify that they should open as soon as the conversation starts, it will open them. If you know that none of your panels are configured to open as soon as the conversation starts, you can untick this checkbox to bypass the check.

Assign menus panels to the Menu Panels list. Set Default Menu Panel to the default menu panel. Typically you will only have one menu panel.

In most cases, you'll assign subtitle panels and menu panels that are in the same canvas as the dialogue UI. However, it's perfectly valid to assign panels that are located in different canvases.

Subtitle Panel

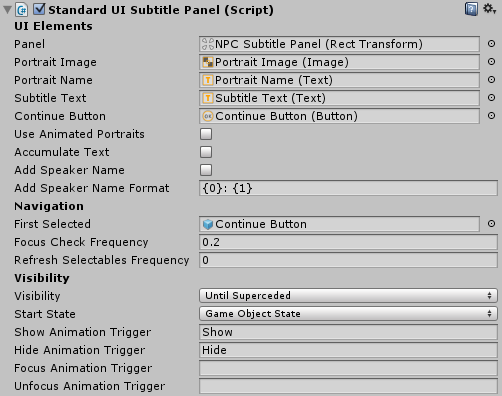

Each subtitle panel has a Standard UI Subtitle Panel component with these properties:

Property Function
Panel The main panel. Not mandatory.
Portrait Image Used to show the actor's portrait image. Not mandatory.
Portrait Name Used to show the actor's display name. Not mandatory.
Subtitle Text Used to show the dialogue text.
Continue Button Shown in Continue Button modes. Not mandatory. Add a Standard UI Continue Button Fast Forward to make the first click fast-forward the text.
Use Animated Portraits Support Animated Portraits. If your actors' portraits aren't animated, untick to bypass its overhead.
Accumulate Text Append dialogue text instead of replacing each line.
Add Speaker Name Prepend the actor's name to the dialogue text.
Speaker Name Format The format in which to prepend the actor's name if Add Speaker Name is ticked.
Navigation
First Selected In joystick/keyboard mode, start UI navigation on this element.
Focus Check Frequency On this frequency, ensure that some UI element is focused for navigation.
Refresh Frequency On this frequency, refresh the cache of navigable UI elements.
Visibility
Visibility When subtitle panel should be visible/hidden.
Start State The starting state of the panel.
Animation Triggers Animator triggers to control panel visibility (see Panel Animation).

Menu Panel

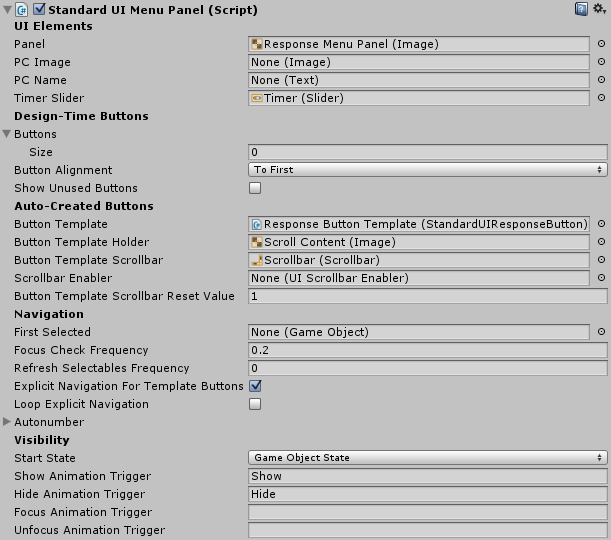

Each menu panel has a Standard UI Menu Panel component with these properties:

Property Function
Panel The main panel. Not mandatory.
PC Image Used to show the player's portrait image. Not mandatory.
PC Name Used to show the player's display name. Not mandatory.
Timer Slider Used to show the time left if a response menu timeout is set. Not mandatory.
Design-Time Buttons
Buttons List of buttons to use for responses. Not mandatory if using Button Template.
Button Alignment If not all buttons are needed, align to the first in the list or the last.
Show Unused Buttons If not all buttons are needed, show the unused buttons as noninteractive.
Auto-Created Buttons
Button Template Template from which to auto-create response buttons.
Button Template Holder Panel that auto-created buttons will be added to.
Button Template Scrollbar Scrollbar if Button Template Holder is part of a ScrollRect. Not mandatory.
Scrollbar Reset Value When showing a new menu, reset scrollbar to this value.
Navigation
First Selected In joystick/keyboard mode, start UI navigation on this element.
Focus Check Frequency On this frequency, ensure that some UI element is focused for navigation.
Refresh Frequency On this frequency, refresh the cache of navigable UI elements.
Explicit Navigation Set button UI navigation to Explicit and restrict navigation to the buttons.
Loop Explicit Navigation Navigating down from bottom button loops to top, and vice versa.
Autonumber Autonumber buttons and assign shortcut keys.
Visibility
Start State The starting state of the panel.
Animation Triggers Animator triggers to control panel visibility (see Panel Animation).

Design-time and auto-created buttons must have a Standard UI Response Button component. You don't have to configure the button's OnClick() event; the menu panel will automatically connect it to the Dialogue System.

Panel Animation

Subtitle panels and menu panels can play animations when their states change. To assign animations, add an Animator component to the panel. Assign an animator controller that has triggers for one or more of the following states. The list below describes when each trigger is set:

  • Show: When the panel opens.
  • Hide: When the panel closes.
  • Focus: When the panel is actively showing the current line of dialogue text/menu.
  • Unfocus: When the panel is still visible but not the currently-active one.

The folder Prefabs ► Art ► Animation contains two example animator controllers:

  • Canvas Group Animator Controller: Fades the panel's canvas group in and out (or to 50% for Focus/Unfocus triggers).
  • Expanding Animator Controller: Expands the panel into view.

Animated Portraits


To use animated sprites instead of static textures for portrait images:

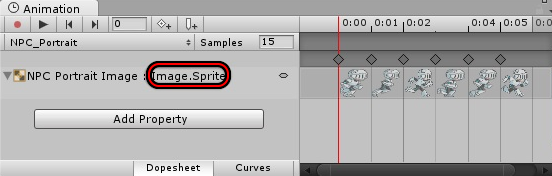

  1. Prepare one or more sprite animation clips that animate the contents of a UI Image component (not a SpriteRenderer), as shown in the image above. Since the dialogue UI works within UI space, and not SpriteRenderer space, your animation clips must control a UI Image, not a SpriteRenderer.
  2. Prepare an animator controller that plays one of the animation clips on start. Add the other animation clips to the animator controller, too, if you've made any.
  3. Add a Dialogue Actor component to each character, and assign the animator controller to it.
  4. Tick the subtitle panel's Use Animated Portraits checkbox to enable animated portrait support.
  5. Add an Animator component to the subtitle panel's portrait image.
  6. Optional: If you want to change the actor's portrait animator state at any time, use the AnimatorPlay() or AnimatorTrigger() sequencer commands to transition to a different state, specifying the portrait image's GameObject name (see Cutscene Sequences). You'll typically put this sequence in a dialogue entry's Sequence field. It might look something like this:
    AnimatorPlay(Talking, NPC Portrait Image);
    AnimatorPlay(Idle, NPC Portrait Image)@{{end}}
    The sequence above plays the character's "Talking" animator state on the NPC Portrait Image GameObject. At the end of the duration determined by the length of the dialogue text, it plays the character's "Idle" animator state.

Typewriter Effect

The Dialogue System includes sophisticated typewriter effects for Unity UI and TextMesh Pro that you can add to your subtitle text elements. Tooltips explain each property. Some additional notes are below.

Characters Per Second

Characters Per Second specifies how fast to type. Make sure this value is no faster than the Dialogue Manager's Subtitle Chars Per Second; otherwise the subtitle may disappear before it's fully typed out.

Rich Text Codes & Control Codes

The typewriter effect handles rich text codes and these special time control codes:

Code Function
. Full pause (default: 1 second).
\, Quarter pause (default: 0.25 second).
> The following text is instant.
< The following text is no longer instant.
\^ Skip to the end.

Events & Messages

The typewriter effects have UnityEvents that run when the typewriter starts, prints a character, and ends. To configure autoscrolling for large blocks of text, you can set the OnCharacter() event to move the scrollbar to the bottom.

The typewriters also send the sequencer message "Typed" when done. Your sequences can listen for this message to run commands as soon as the typewriter is done. (See Cutscene Sequences.)

Localizing UI Elements

To localize a Text element (such as a "Continue" button) or the options of a Dropdown element, add a Localize UI component. You can assign a Text Table to this component. If none is assigned, it will pull the localized text from the Text Table assigned to the Dialogue Manager. You do not need to do this for text in your dialogue database such as conversations and quests. Dialogue databases contain their own localization. For more information, see Localization.

TextMesh Pro Support

The Dialogue System's Standard UI system natively supports TextMesh Pro as well as regular UI Text. Depending on the version of Unity and TextMesh Pro you're using, you may need to add TMP_PRESENT to your project's scripting define symbols to enable support. To do this, select Edit → Project Settings → Player. In the Other Settings section, add TMP_PRESENT to the Scripting Define Symbols field. If this field already contains text, put a semicolon between the existing text and TMP_PRESENT.

If the TextMesh Pro Typewriter Effect still isn't available after adding the symbol, right-click on Plugins ► Pixel Crushers ► Dialogue System ► Scripts and click Reimport. Then do the same for Plugins ► Pixel Crushers ► Dialogue System ► Wrappers.

If you want to adapt one of the existing prefabs for TextMesh Pro, add an instance of the prefab to a Canvas in your scene, such as the Dialogue Manager's Canvas.

When you add the template to the scene (in a Canvas), the Standard Dialogue UI, Standard UI Subtitle Panel, or Standard UI Menu Panel fields will look like this:


Unassign the field. The field will change into this:


Then you can remove the UI Text component from the NPC Subtitle Line GameObject, add a TextMeshProUGUI, and assign it to the field. If you want to use a typewriter effect, you can also remove the Unity UI Typewriter Effect from the GameObject and add a Text Mesh Pro Typewriter Effect.

Note: The evaluation version is compiled without TextMesh Pro support.

Other Dialogue UI Systems

The Dialogue System still supports the older Unity UI Dialogue UI component as well as the Legacy GUI Unity Dialogue UI, TextMesh Pro Dialogue UI, and others in the Third Party Support folder. The older Unity UI and legacy GUI prefabs are in Prefabs ► Deprecated.

Override Dialogue UI & Override Display Settings

To override the dialogue UI used in conversations involving an actor, add an Override Dialogue UI component to the actor's GameObject. To override all of the Dialogue Manager's display settings, including the dialogue UI, add an Override Display Settings component instead.

You can also override certain display settings on a per-conversation basis by inspecting the conversation's properties in the Dialogue Editor.

If you only want to specify that the actor use a specific panel in the regular dialogue UI, set the panel on the actor's Dialogue Actor component.

Bark UIs

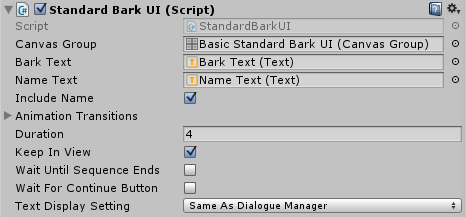

A bark UI is typically on a world space canvas positioned above the barker's head, but it can also be on a screen space canvas. It has these properties:

Property Function
Canvas Group The bark panel's canvas group, used to show/hide the bark UI. Not mandatory.
Bark Text Used to show the bark text.
Name Text Used to show the barker's display name. Not mandatory.
Include Name Prepends the name to the Bark Text. Don't tick this if you're using Name Text, as that would be redundant.
Animation Transitions Optional animator triggers to show and hide the bark UI.
Duration Default duration in seconds to show the bark.
Keep In View Keeps the bark UI's anchor within view of the camera.
Wait Until Sequence Ends Keeps bark visible until its Sequence ends.
Wait for Continue Button If bark UI has a continue button, wait for it to be clicked. Configure the button's OnClick() event to call the bark UI's OnContinue() method.
Text Display Setting Specifies when to show bark text. Same As Dialogue Manager uses Dialogue Manager's Subtitle Settings.

The Prefabs ► Standard UI Prefabs folder contains two bark UI templates:

  • Basic: A basic overhead bark UI.
  • Bubble: Displays barks in cartoon bubbles over actors' heads.

Dialogue Actor


To associate a GameObject with an actor in your dialogue database, add a Dialogue Actor component. Otherwise, the Dialogue System will search the scene for a GameObject whose name matches the actor's name, for example to cut the camera to a closeup of the actor.

You can also use Dialogue Actor to configure how the actor interacts with the dialogue UI:

Property Function
Portrait If assigned, overrides the actor's portrait in the dialogue database.
Bark UI Settings A bark UI prefab to instantiate as a child of the GameObject. Use this if your actor uses barks. A good default to start with is the prefab Prefabs ► Standard UI Prefabs ► Templates ► Basic ► Basic Standard Bark UI.
Dialogue UI SettingsLets you specify which subtitle and/or response menu panels to use for this actor. You can also specify an animator controller to use for animated portrait images and a custom color to use for subtitle text.

When deciding which menu panel to use, the Dialogue System will give preference to the player's menu panel. If the player is configured to use the default menu panel and the other participant (e.g., NPC) specifies a menu panel, the Dialogue System will use the NPC's menu panel.
