I've broken it - Conversation text not coming through...

Announcements, support questions, and discussion for the Dialogue System.
gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

I've broken it - Conversation text not coming through...

Post by gamingdebugged »

Hi all,

Please could you help. I have done something that has stopped the conversation text coming through to the UI.

The database is set, the images are coming through but not the text.

https://drive.google.com/file/d/11kwGyy ... sp=sharing

Any help is appreciated :D
User avatar
Tony Li
Posts: 22034
Joined: Thu Jul 18, 2013 1:27 pm

Re: I've broken it - Conversation text not coming through...

Post by Tony Li »

Hi,

1. Open the Welcome Window. Make sure the TMP_PRESENT checkbox is still ticked.

2. Inspect your dialogue UI. Make sure the subtitle panels' Subtitle Text fields are still assigned.

3. Make sure the correct dialogue UI is assigned to the Dialogue Manager's Display Settings > Dialogue UI field.

4. Test the scene.

4. If it still doesn't work, temporarily set the Dialogue Manager's Other Settings > Debug Level to Info. Then reproduce the issue. If you see lines in the Console like "Dialogue System: (Actor) says: 'Hey Sai, another checkup?'" then the conversation is working but the issue is with the dialogue UI.
gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

Re: I've broken it - Conversation text not coming through...

Post by gamingdebugged »

Thanks for replying.

1 - TMP_PRESENT is NOW checked... no change

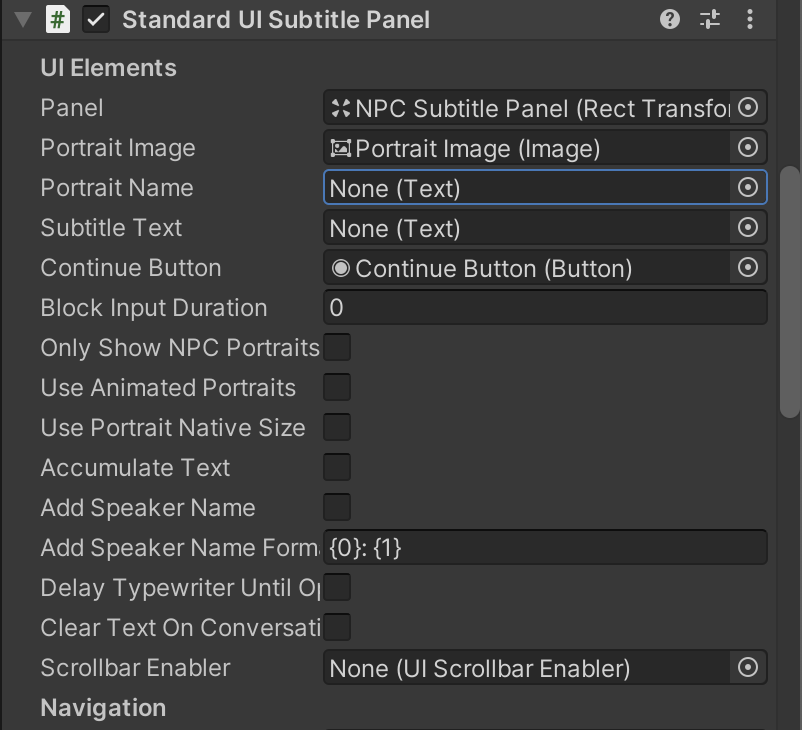

2 - See attachment - when I try and drag the GameObjects into Portrait name or text into this box it doesn't take. do I just use a prefab from the list?
Attachments
Screenshot 2024-11-06 at 11.20.42.png
Screenshot 2024-11-06 at 11.20.42.png (108.29 KiB) Viewed 90 times
gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

Re: I've broken it - Conversation text not coming through...

Post by gamingdebugged »

I think the Dialogue is triggering in the console... This is a different scene but the dialog is correct... It might be a UI problem...

Dialogue System: Add Link (Colonel): ID=1:1 'Come in GuestBot 306, please confirm pilot name and how you gained access to SATA station? Over.
' (True)
Last edited by gamingdebugged on Wed Nov 06, 2024 9:37 am, edited 1 time in total.
User avatar
Tony Li
Posts: 22034
Joined: Thu Jul 18, 2013 1:27 pm

Re: I've broken it - Conversation text not coming through...

Post by Tony Li »

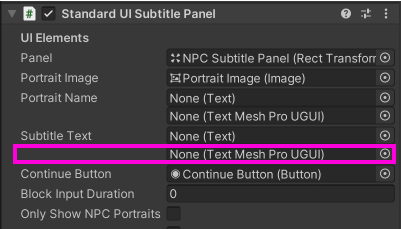

It's a UI problem. When you enable TMP_PRESENT and the project is able to compile, the Subtitle Text field should look like this, with an additional slot for TextMeshProUGUI:

gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

Re: I've broken it - Conversation text not coming through...

Post by gamingdebugged »

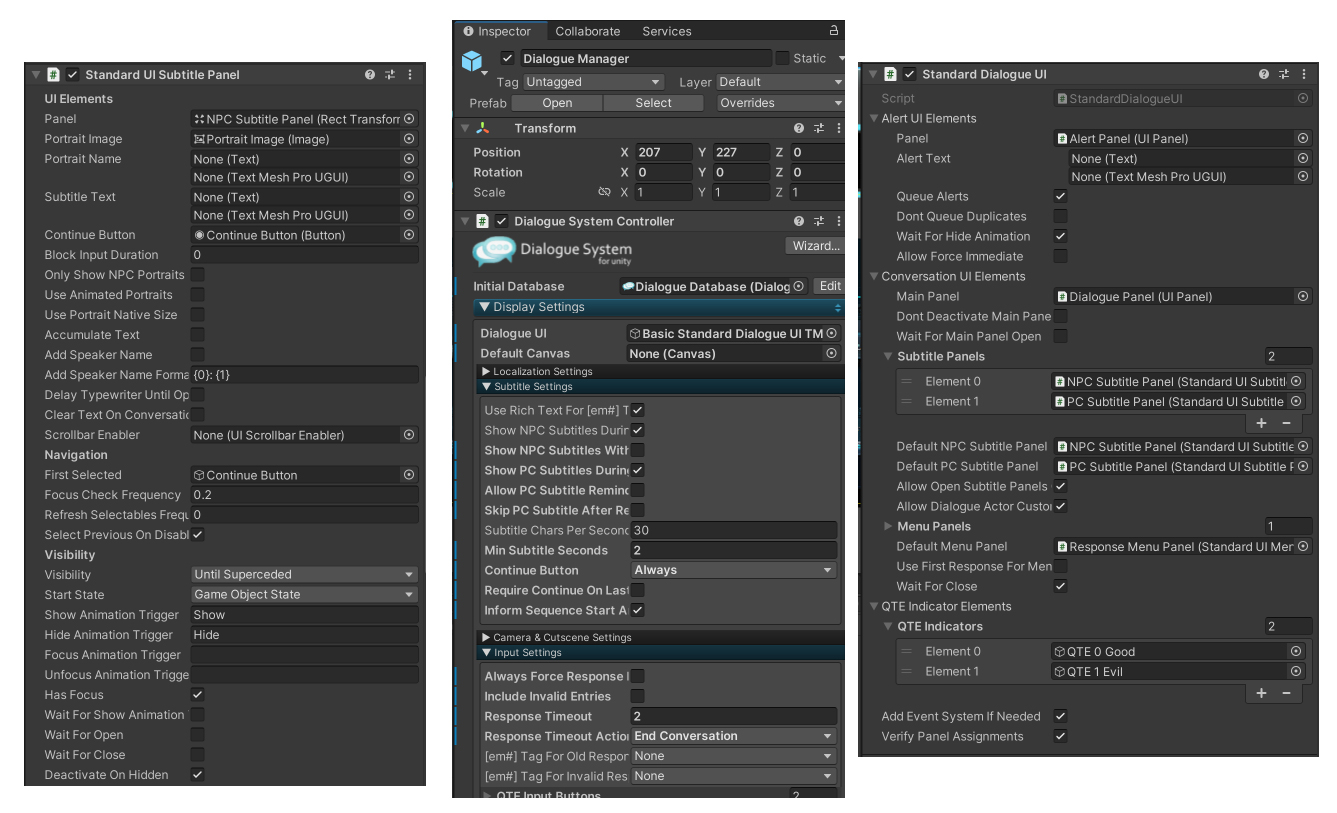

TMP_PRESENT is activated and the settings you suggested are correct. Here are some of the other settings...
Attachments
User avatar
Tony Li
Posts: 22034
Joined: Thu Jul 18, 2013 1:27 pm

Re: I've broken it - Conversation text not coming through...

Post by Tony Li »

Hi,

You must assign a TextMeshProUGUI component to the Subtitle Text field:

gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

Re: I've broken it - Conversation text not coming through...

Post by gamingdebugged »

Tony... you are a LEGEND!!!!

That worked! I have no idea why that happened across all scenes with a dialogue manager...

I can't thank you enough. My last back up was a month ago so you really saved my sanity!!
User avatar
Tony Li
Posts: 22034
Joined: Thu Jul 18, 2013 1:27 pm

Re: I've broken it - Conversation text not coming through...

Post by Tony Li »

Hi,

Glad to help!

You may have installed a new build platform (e.g., WebGL or iOS) and switched build platforms. When you tick the TMP_PRESENT checkbox, the Welcome Window is only able to set the TMP_PRESENT Scripting Define Symbol for platforms that are currently installed. If you install another platform after that, then the Dialogue System's TextMesh Pro support won't be enabled for it, and it will lose the Subtitle Text assignment.
gamingdebugged
Posts: 9
Joined: Sat Oct 19, 2024 8:54 am

Re: I've broken it - Conversation text not coming through...

Post by gamingdebugged »

Good to know...

I was using the Corgi Engine and then installed FEEL but later found out that I didn't need to and I had lots of conflicts. I removed feel, MMTools and MMFeedbacks and had to re-import.

This seems to change a few settings post update.
