[HOWTO] How To: Customize Scrolling Dialogue UI

Post by Tony Li »

This article contains tips on customizing the Scrolling Dialogue UI.

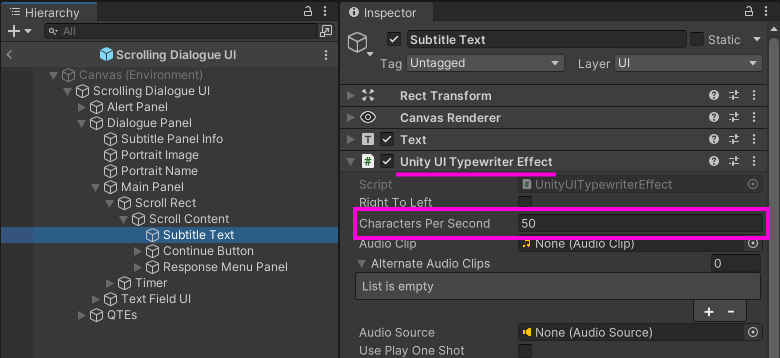

To control the typing speed of a dialogue UI's subtitle text, inspect the Subtitle Text GameObject. The basic Scrolling Dialogue UI prefab uses Unity UI Text, so it has a UnityUITypewriterEffect component. Increase its Characters Per Second:

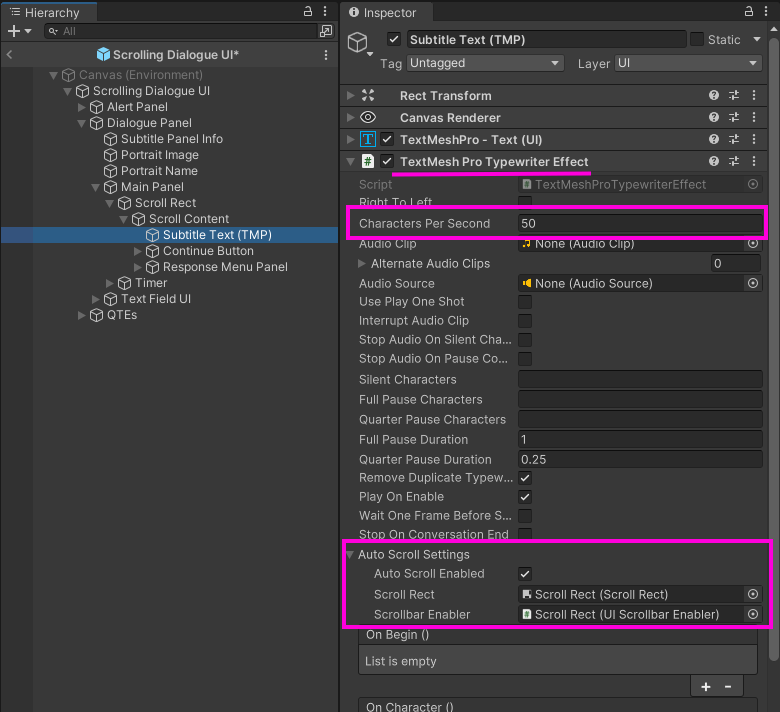

However, I recommend enabling TextMesh Pro Support. Then replace the Subtitle Text GameObject with a TextMeshProUGUI version, and add a TextMeshProTypewriterEffect:


Also configure Auto Scroll Settings, which I also highlighted above.

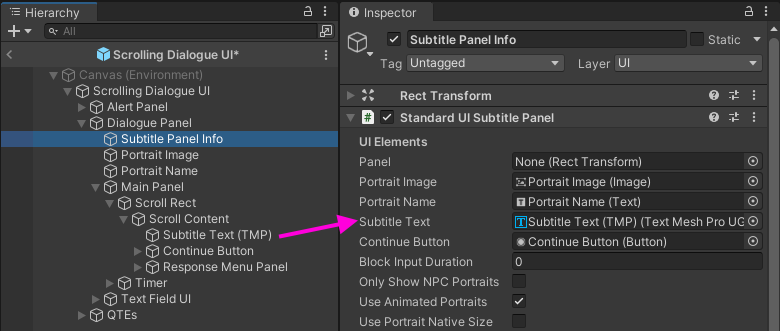

Remember to assign it to the Subtitle Panel Info's StandardUISubtitlePanel component:

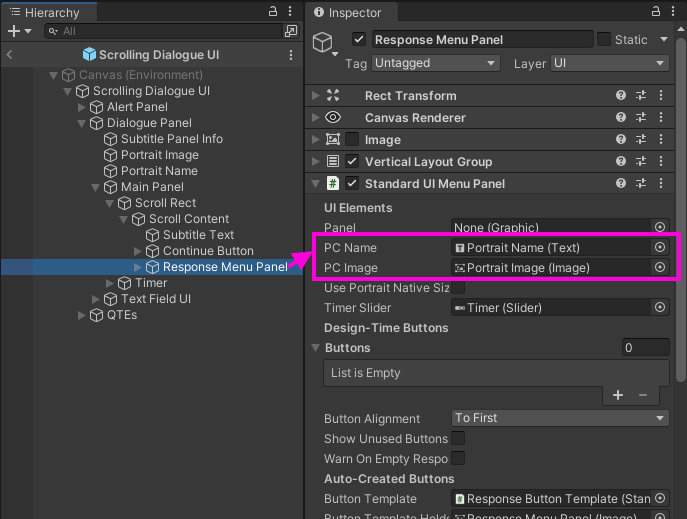

If you only want to show the NPC's portrait, tick the Subtitle Panel Info GameObject's Only Show NPC Portrait checkbox, and unassign these two fields on the response menu:


Finally, if you want to indent lines, please see: How To: Prepend actor name and indent in TextMesh Pro

And if you want to color subtitle text or actor names, see: How To: Color Actor Name and Indent Text
