Text wrapping behaviour, CRPG style

[apocrypha1]

Hi. I'm looking to achieve a behavior with my dialogue UI reminiscent of old CRPGs like Planescape Torment. Disco Elysium also uses a very similar style.

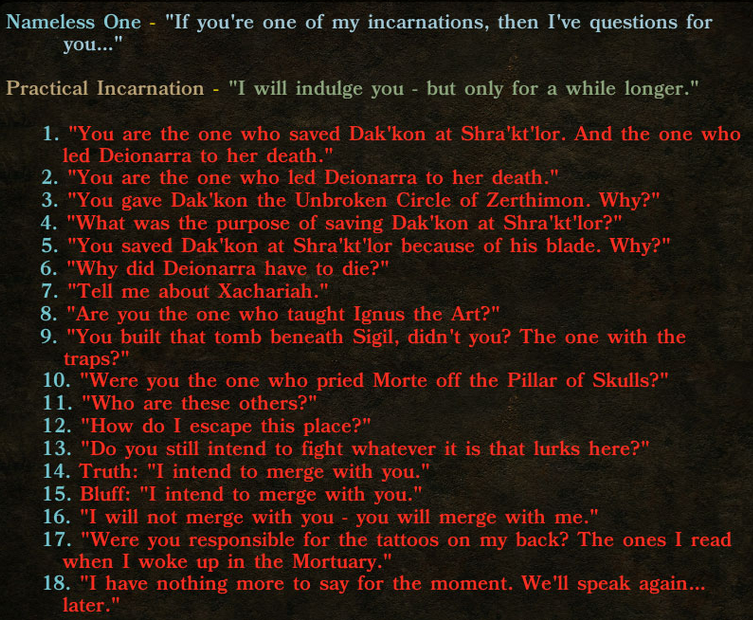

This image covers the style I'm looking for pretty well:

Screenshot 2023-08-23 072153.png (995.29 KiB) Viewed 210 times

1. Basically, when the text of a subtitle or response wraps, I want the next line to appear slightly in front of the previous one, something equivalent to adding a couple tab keys. For the response options I would also love to use the Dialogue System's Autonumbering feature if possible, to speed up work.

2. Also, related, is there a way to apply a different color to the autonumbering than the regular text? Can it be done in the "Format" field of the Standart UI Menu Panel? And same question for speaker names, I suppose.

I've been bashing my head against this for a while now and I can't seem to figure out any way of doing it. I'm using TextMeshPro and have tried messing around with the Wrapping/Overflow options to no avail. Is there a simple way of implementing something like this or would it involve a lot of code?

I also apologize if this is more related to Unity's UI System than this plugin, or if I've missed a very obvious instruction somewhere - I'm inexperienced enough to not be completely sure.

Thanks a ton

[Tony Li]

Hi,

1. Basically, when the text of a subtitle or response wraps, I want the next line to appear slightly in front of the previous one, something equivalent to adding a couple tab keys. For the response options I would also love to use the Dialogue System's Autonumbering feature if possible, to speed up work.

Normally I'd point you to How To: Prepend actor name and indent in TextMesh Pro or How To: Indent Text but Unity keeps breaking the <indent> tag. (If I recall correctly, I think Disco Elysium used NGUI, so we didn't have this issue.) You can apply the fix described in this post. See also: How can I modify built-in packages?

2. Also, related, is there a way to apply a different color to the autonumbering than the regular text? Can it be done in the "Format" field of the Standart UI Menu Panel? And same question for speaker names, I suppose.

Yes. For the response menu, tick the StandardUIMenuPanel's Autonumber > Enabled, and set the Format to something like:

Code: Select all

<color=blue>{0}.</color><indent=5%><color=red>{1}</color></indent>

The format above will color the number blue and then indent the response text and color it red. You can use web colors (#rrggbb) in the <color> tag.
