Stop portrait 'hiding' and display active talker
Stop portrait 'hiding' and display active talker

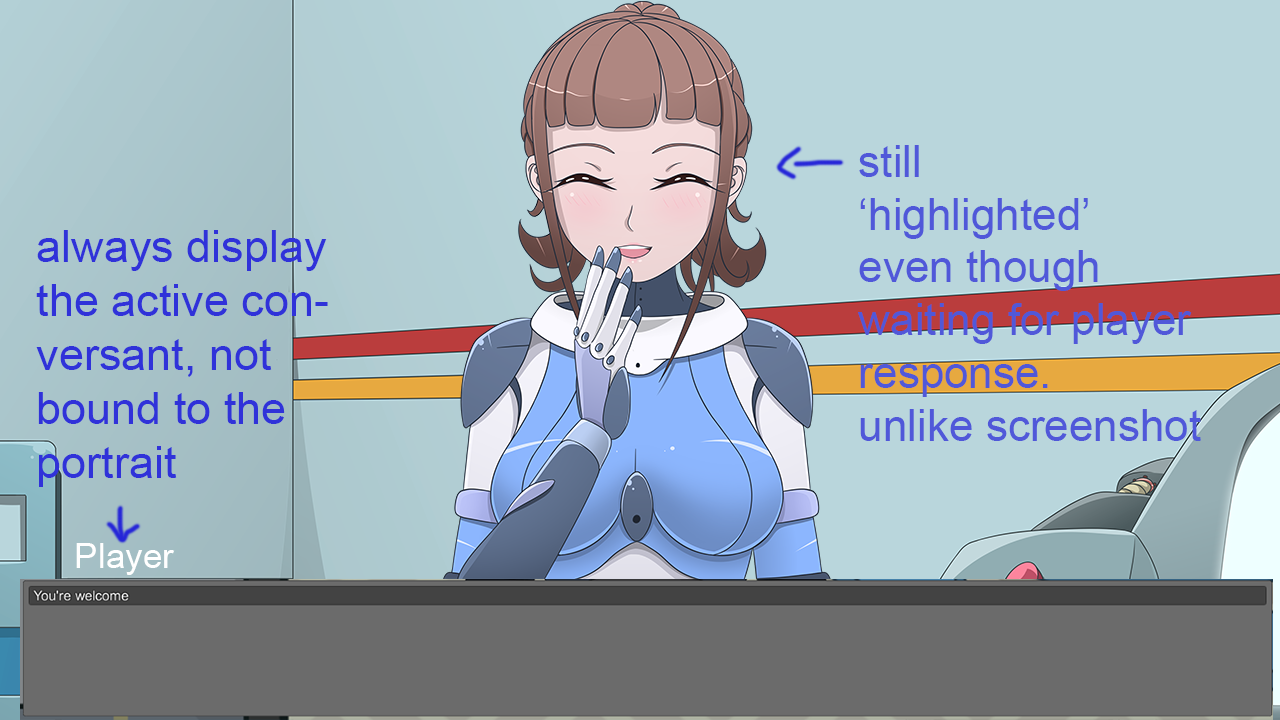

Hey Tony, so I'm trying to achieve a kind of realistic 'first-person' dialogue setup, where the character that you are conversating with stays in the middle of the screen in a somewhat big proportion and the player never shows up as the dialogues basically happens at his POV (you can see it on the example image attached).
For that I used the VN template, and adjusted the portrait positions accordingly, that's all i've done for now.
From what I understood, if theres no portrait specified for the player, the conversant portrait will still show up, but it gets toned down.

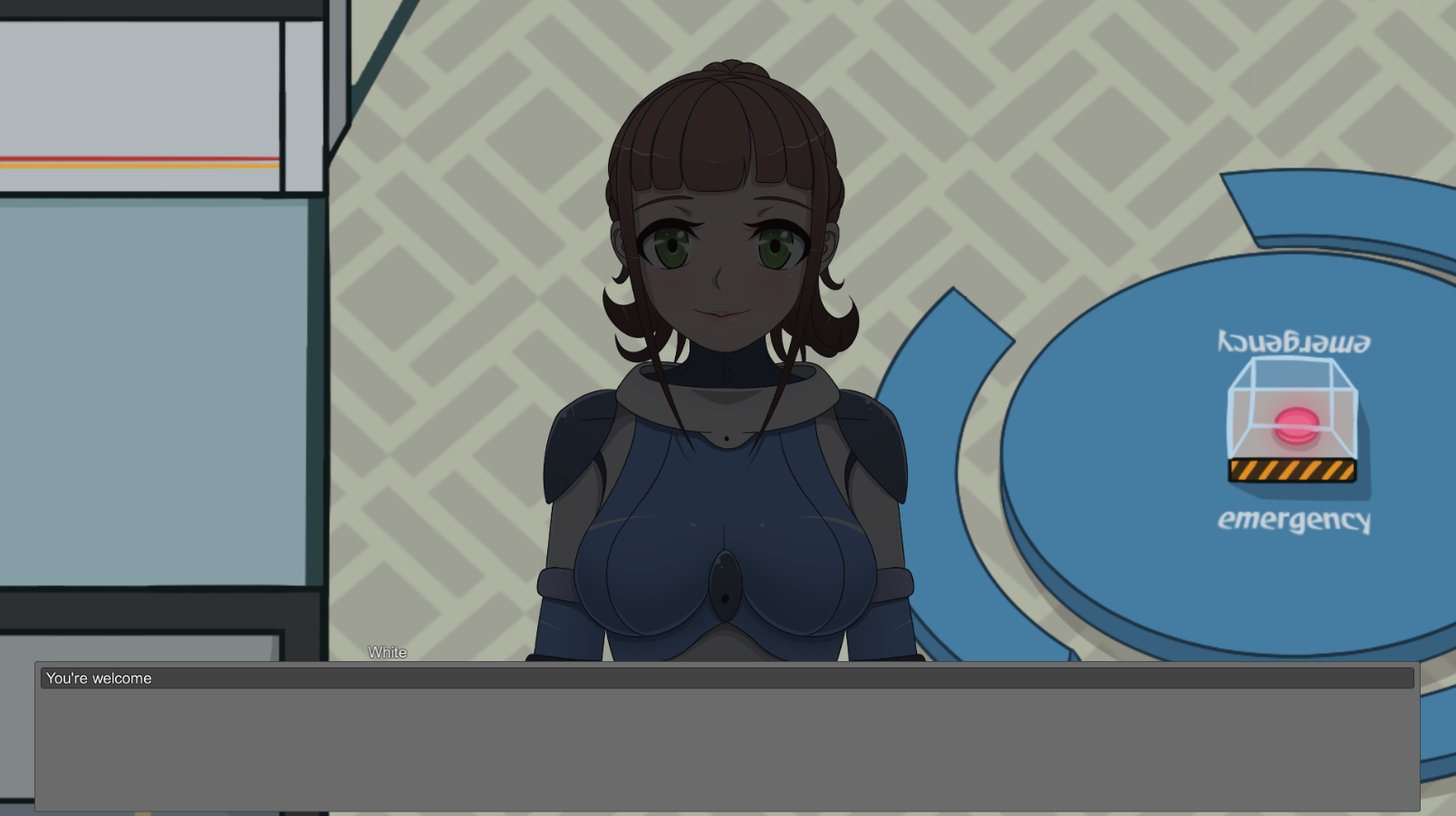

I couldn't figure out is how to stop that from happening (aka the character sprite getting black tinted when the player is talking or choosing an answer like you can see in the screenshot);
And also how can I make sure the name of the active conversant is shown on the left, unrelated to their portrait pictures like it is set by default? (also shown in the example image).
Thanks in advance! Hope you are off to a great start with 2021!
For that I used the VN template, and adjusted the portrait positions accordingly, that's all i've done for now.
From what I understood, if theres no portrait specified for the player, the conversant portrait will still show up, but it gets toned down.
I couldn't figure out is how to stop that from happening (aka the character sprite getting black tinted when the player is talking or choosing an answer like you can see in the screenshot);
And also how can I make sure the name of the active conversant is shown on the left, unrelated to their portrait pictures like it is set by default? (also shown in the example image).
Thanks in advance! Hope you are off to a great start with 2021!
- Attachments
-
- example.png (327.84 KiB) Viewed 1113 times
-
- Screenshot_1.png (443.88 KiB) Viewed 1113 times
Re: Stop portrait 'hiding' and display active talker
Hi,
Change your dialogue UI's animator settings so it doesn't play focus and unfocus animations. The steps will vary slightly depending on which dialogue UI prefab you're using. The easiest is probably to duplicate the NPC subtitle panel's animator controller asset. In the duplicate, remove the Unfocus state. Assign the duplicate to the subtitle panel's Animator component. Clear the Standard UI Subtitle Panel component's Unfocus Animation Trigger field. You can also remove the elements from the OnOpen(), OnFocus(), and OnUnfocus() UnityEvents that control the Portrait Name GameObject.
Then inspect the player's subtitle panel and remove the Portrait Name and Portrait Image GameObjects. If the response menu panel has Portrait Name and Portrait Image GameObjects, remove those, too.
Change your dialogue UI's animator settings so it doesn't play focus and unfocus animations. The steps will vary slightly depending on which dialogue UI prefab you're using. The easiest is probably to duplicate the NPC subtitle panel's animator controller asset. In the duplicate, remove the Unfocus state. Assign the duplicate to the subtitle panel's Animator component. Clear the Standard UI Subtitle Panel component's Unfocus Animation Trigger field. You can also remove the elements from the OnOpen(), OnFocus(), and OnUnfocus() UnityEvents that control the Portrait Name GameObject.
Then inspect the player's subtitle panel and remove the Portrait Name and Portrait Image GameObjects. If the response menu panel has Portrait Name and Portrait Image GameObjects, remove those, too.
Re: Stop portrait 'hiding' and display active talker

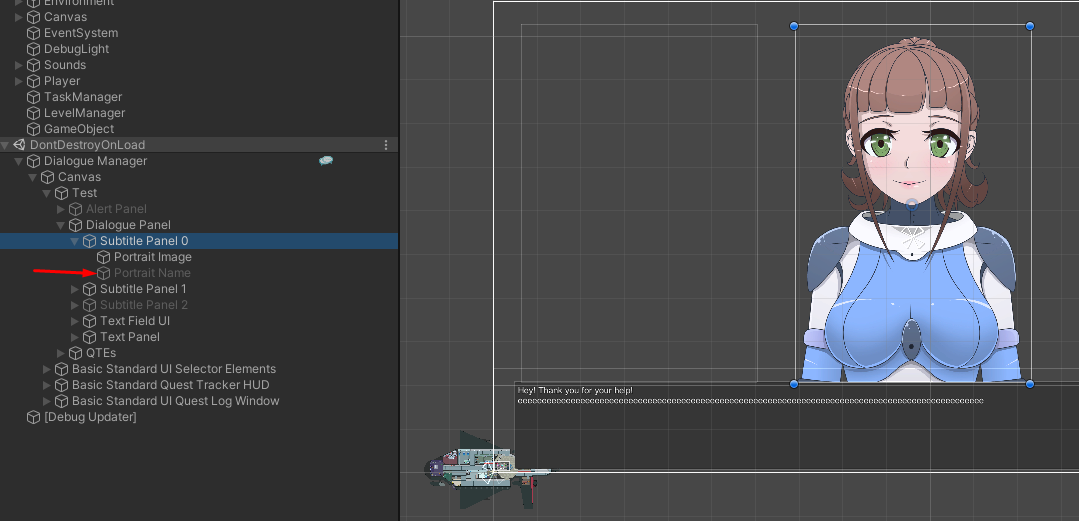

Thank you Tony, now the character doesn't unfocus anymore, but for some reason, when the character is talking, his Portrait Name gameobject is deactivated (shown on screenshot, also the Player character does display its name when talking only the NPC character doesn't), any ideas why? Is there any place that I can manually 'rewire' the Portrait Name to show up again when a character is talking? (I'm using the VN Template, if that helps.)
- Attachments
-
- Screenshot_2.png (122.92 KiB) Viewed 1106 times
Re: Stop portrait 'hiding' and display active talker
Hi,
Check the subtitle panel's OnOpen/OnClose/OnFocus/OnUnfocus UnityEvents.
The basic VN template sets Portrait Name active and inactive. Since you're not using focus triggers, you can probably just remove those events.
Check the subtitle panel's OnOpen/OnClose/OnFocus/OnUnfocus UnityEvents.
The basic VN template sets Portrait Name active and inactive. Since you're not using focus triggers, you can probably just remove those events.
Re: Stop portrait 'hiding' and display active talker

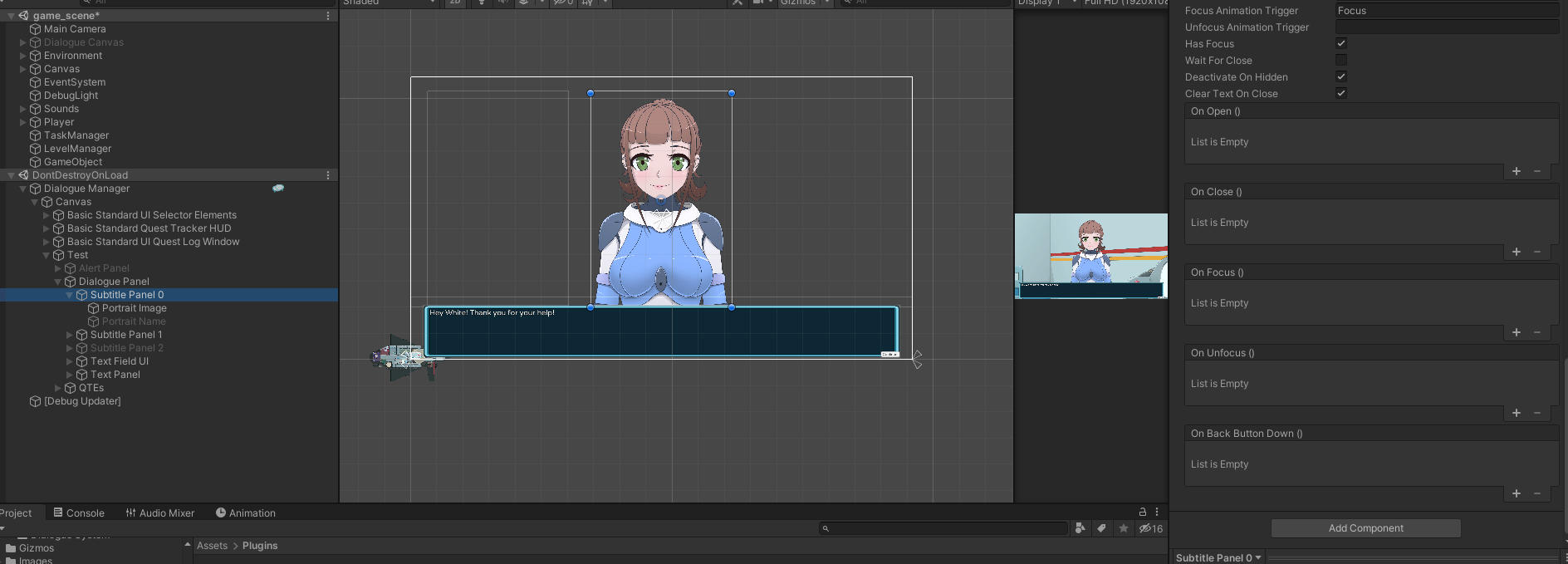

Sorry for not specifying, but the events were already emptied, the result stood the same :/
- Attachments
-
- Screenshot_2.png (165.01 KiB) Viewed 1101 times
Re: Stop portrait 'hiding' and display active talker

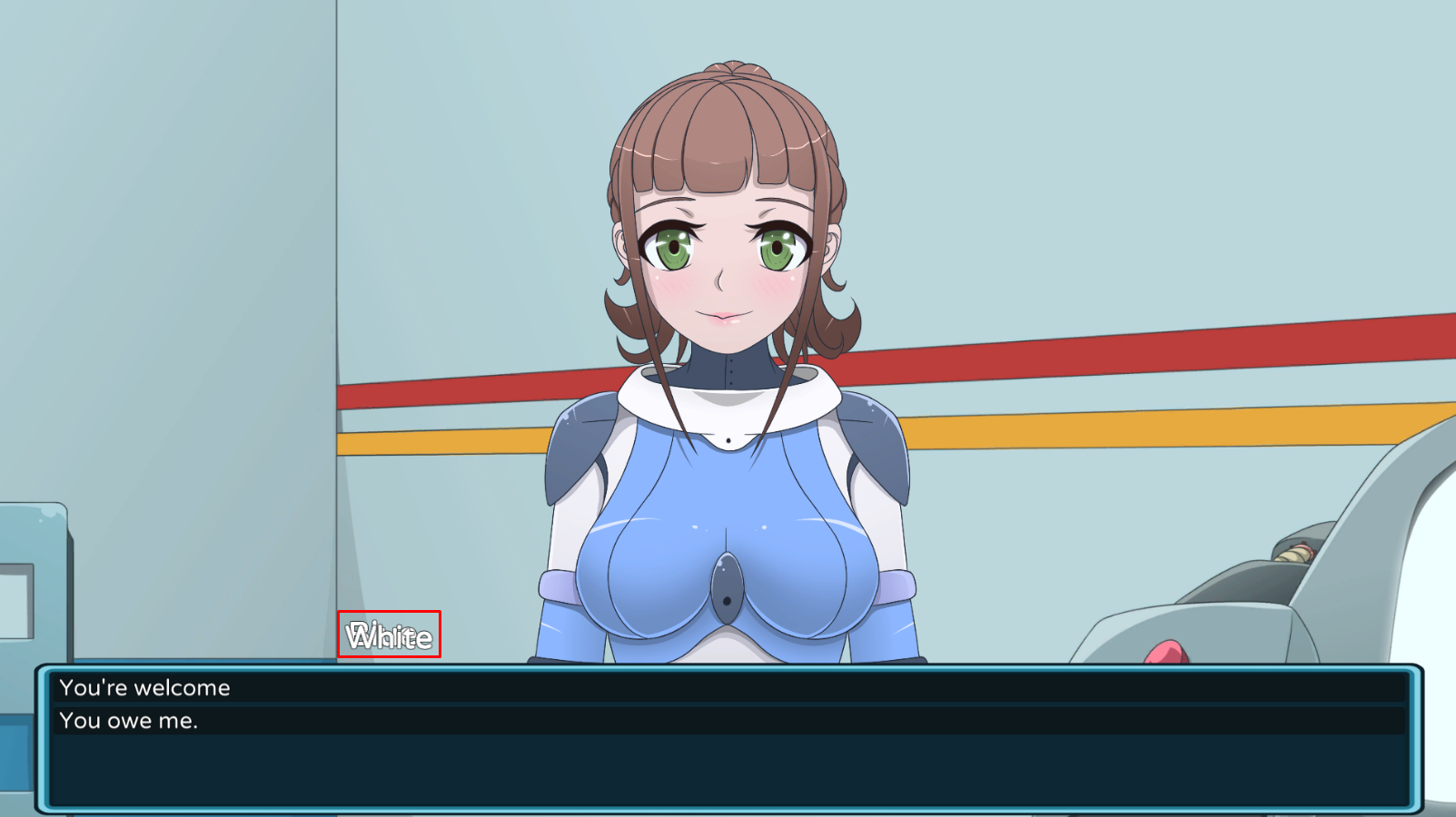

Thank you Tony, the patch worked, now the portrait name displays correctly when starting the dialogue, but how can I hide it when the player is choosing a reply/ replying? What currently happens is that both names overlap like you can see in the screenshot
- Attachments
-
- Screenshot_2.png (408.37 KiB) Viewed 1094 times
Re: Stop portrait 'hiding' and display active talker
Hi,
Try configuring the subtitle panel's OnFocus() UnityEvent to activate the panel's Portrait Name GameObject and OnUnfocus() to deactivate Portrait Name.
Try configuring the subtitle panel's OnFocus() UnityEvent to activate the panel's Portrait Name GameObject and OnUnfocus() to deactivate Portrait Name.
Re: Stop portrait 'hiding' and display active talker

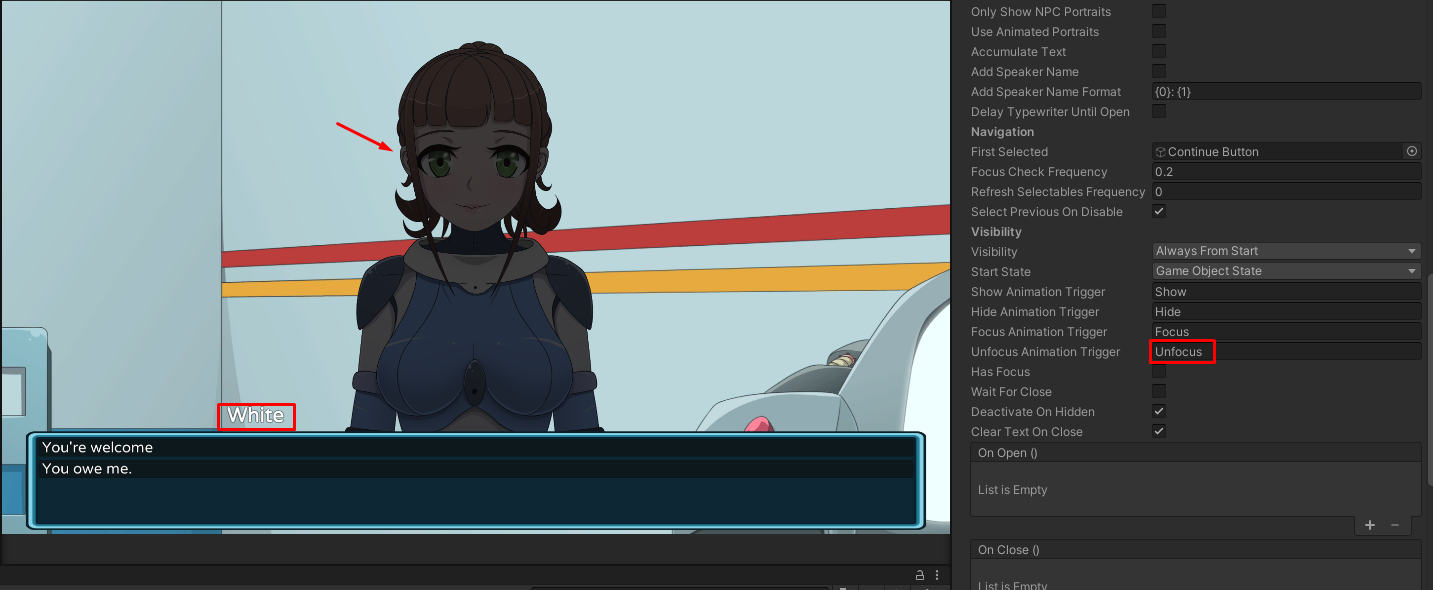

I Already tried that before, it didn't work and I imagine thats because on previous steps in order to prevent the portrait image from unfocusing we cleared the 'Unfocus Animation Trigger' field, right?
Assuming that this is the case, I readded the 'Unfocus' trigger, now the character name went away correctly but the portrait is back to unfocusing also, so it looks what we would have to do is separate the portrait image unfocus animation from the portrait name unfocus animation I guess?
Assuming that this is the case, I readded the 'Unfocus' trigger, now the character name went away correctly but the portrait is back to unfocusing also, so it looks what we would have to do is separate the portrait image unfocus animation from the portrait name unfocus animation I guess?
- Attachments
-
- Screenshot_2.png (192.75 KiB) Viewed 1093 times
Re: Stop portrait 'hiding' and display active talker
Or maybe you could add an extra bool like "Unfocus Only Name", tooltip description: " If checked, unfocusing will only affect the Potrait Name, not hiding the Portrait Image". In cases like this where you don't want to unfocus the portrait image but still want to hide the character name when he is not talking?
