Gif Player LuaScript Failure [Solved!]

[CodePrincess]

Hello, everybody!

So I bought a gif player from OldMoat games and I wanted to be able to control which gifs play when from the comfort of my dialog editor. I wrote this script:

Code: Select all

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GifManager : MonoBehaviour {
    [SerializeField] public OldMoatGames.AnimatedGifPlayer[] Gif;

    public GifManager()
    {

    }

    public void HideGif(double e)
    {
        Gif[(int)e].enabled = false;
    }

    public void ShowGif(double e)
    {
        Gif[(int)e].enabled = true;
    }

    private void OnEnable()
    {
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("HideGif", this, typeof(
            GifManager).GetMethod("GifManager"));
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("ShowGif", this, typeof(
           GifManager).GetMethod("GifManager"));
    }

    private void OnDisable()
    {
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("HideGif");
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("ShowGif");
    }
}

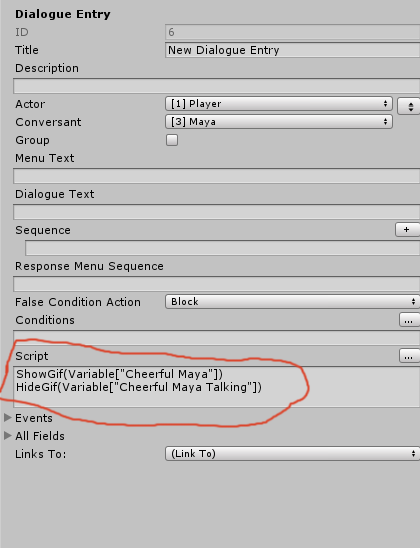

Plunked it in my Dialogue Manger, then used the functions in my editor, they looked like this:


When I ran the program, nothing happened.

Does anybody see a glaring error or two?

Thank you and take care!

[Tony Li]

Hi,

Try this:

Code: Select all

ShowGif(Variable["Cheerful_Maya"])
HideGif(Variable["Cheerful_Maya_Talking"])

Lua variables match the names you've defined in your dialogue database except for certain special characters like spaces, as described in Important Note About Tables Indices. In Lua, characters such as spaces are replaced by underscores ( _ ).

[CodePrincess]

Try this:
CODE: SELECT ALL

ShowGif(Variable["Cheerful_Maya"])
HideGif(Variable["Cheerful_Maya_Talking"])

Okay, I did like you suggested and found a spelling error in my Variables list in the process (sweet!).
But after running the Lua functions again, even from the Dialog System Trigger that starts the conversation, the character still seems totally oblivious to the commands.

Is something overriding them?

I'm sorry for taking so much of your time, but thank you. I don't think I could figure this out on my own.

[Tony Li]

Hi,

Try the script below. I made two changes:

1. Got rid of the GifManager() constructor method. You don't need to define a constructor for MonoBehaviour classes.

2. More importantly, I changed GetMethod("GifManager") to GetMethod("ShowGif") and the same for HideGif. The original code was accidentally trying to get a method named GifManager() instead of ShowGif(). Sorry, I should've caught those before. I blame it on Saturday morning before coffee.

Code: Select all

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GifManager : MonoBehaviour {
    [SerializeField] public OldMoatGames.AnimatedGifPlayer[] Gif;

    public void HideGif(double e)
    {
        Gif[(int)e].enabled = false;
    }

    public void ShowGif(double e)
    {
        Gif[(int)e].enabled = true;
    }

    private void OnEnable()
    {
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("HideGif", this, typeof(
            GifManager).GetMethod("HideGif"));
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("ShowGif", this, typeof(
           GifManager).GetMethod("ShowGif"));
    }

    private void OnDisable()
    {
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("HideGif");
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("ShowGif");
    }
}

[CodePrincess]

Alright! Now we're getting somewhere!
Okay, the starting animation stops running, no new gifs show up, but animation resumes after the conversation ends. I need to figure out how to render images visible/invisible now. enable alone won't do the trick. That sounds like a Unity job, so Google probably knows something...

Thank you again, and I'll update as soon as I figure this out!

[Tony Li]

If the "Cheerful Maya" AnimatedGifPlayer's GameObject is inactive, you may need to activate it:

Code: Select all

public void ShowGif(double e)
{
    Gif[(int)e].gameObject.SetActive(true);
    Gif[(int)e].enabled = true;
}

[CodePrincess]

So the gifs are activating/deactivating when called, but only cheerful maya is ever drawn.
Do I really need to make every possible mistake before this project will let itself be done?

Here's my code:

Code: Select all

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GifManager : MonoBehaviour {
    [SerializeField] public OldMoatGames.AnimatedGifPlayer[] Gif;
    [SerializeField] private bool[] doDraw;


    public void HideGif(double e)
    {
        Debug.Log("Hiding a gif: e = "+e);
        Gif[(int)e].gameObject.SetActive(false);
       // Gif[(int)e].enabled = false;
       // Gif[(int)e].Pause();
    }

    public void ShowGif(double e)
    {
        Debug.Log("Showing a Gif: e ="+e);
        Gif[(int)e].gameObject.SetActive(true);
      //  Gif[(int)e].enabled = true;
       //Gif[(int)e].Play();

    }


    private void OnEnable()
    {
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("HideGif", this, typeof(
            GifManager).GetMethod("HideGif"));
        PixelCrushers.DialogueSystem.Lua.RegisterFunction("ShowGif", this, typeof(
           GifManager).GetMethod("ShowGif"));
    }

    private void OnDisable()
    {
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("HideGif");
        PixelCrushers.DialogueSystem.Lua.UnregisterFunction("ShowGif");
    }
    void Start()
    {
        Debug.Log("GifManager.Start() was run.");

        for (int i = 0; i < Gif.Length; i++)
        {

             Gif[i].gameObject.SetActive(doDraw[i]);
            Gif[i].enabled = doDraw[i];

        }

    }
}

I understand if this is more work for you than could possibly be worth your trouble. But if not, thanks again.

[Tony Li]

Hi,

I haven't used Animated GIF Player, and the documentation isn't online, so we may need to fumble a bit until we find the solution.

What if you try uncommenting the lines that you commented out? Something like:

Code: Select all

public void HideGif(double e)
{
    Debug.Log("Hiding a gif: e = "+e);
    Gif[(int)e].gameObject.SetActive(false); // Once inactive, I think that's all you need to do here.
}

public void ShowGif(double e)
{
    Debug.Log("Showing a Gif: e ="+e);
    Gif[(int)e].gameObject.SetActive(true);
    Gif[(int)e].enabled = true;
    Gif[(int)e].Play(); // Assuming there's a Play() method.
}

[CodePrincess]

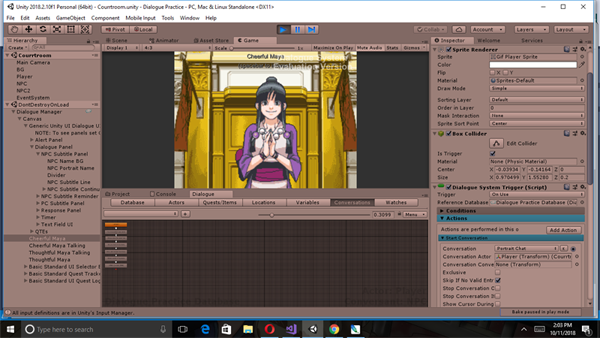

I think the problem is that using any gif player commands before all the gifs are loaded cause it to mess up. Yep, that's it! Now all I need to do is... the gif objects have just spontaneously deassigned their assets. I managed to reassign them, but now my trigger sprite looks like this:


And I can't trigger the conversation at all.

What would make the trigger act like that?

[Tony Li]

Hi,

Are you talking about the "Cheerful Maya - (spacebar to interact)" message?

Are there any errors in the Console window?
