VN-style with multiple NPCs visible?

[Cyllya]

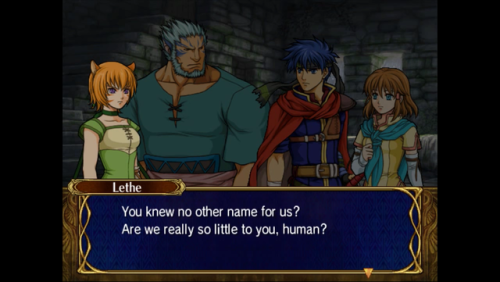

Howdy. I'm new to Unity and currently trying to figure out how to get the Dialogue System to make something like this: Text area along the bottom of the screen, NPC portraits above it, only one subtitle is visible at a time but all the NPCs participating in the conversation (up to four) will have portraits remain visible, the NPCs who aren't currently speaking will be darkened slightly, player portrait is never visible. (Examples of an existing game that uses something like this: here, here, here. Attached one of them, in case the links don't work.) There might be some cases where someone joins the conversation partway through, but for the most part, they should all be in place at the start of the conversation.

So the first thing I need to figure out is how to get all the portraits visible at once.

When I tried the "Allow Open Subtitle Panels On Start Conversation" option, it just made the player and one conversant visible. Seems like the "multicharacter UI' on the Extras page doesn't really work any more. I'm thinking about having the portraits as separate game objects rather than part of the subtitle panel, not sure how that will go.

Advice?

Thanks

[Tony Li]

Hi! Here's an example: VNFocusUIExample_2018-10-18.unitypackage

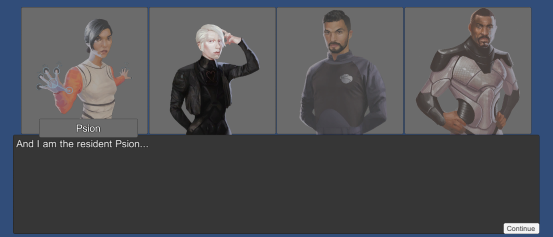

It looks like this:



It assumes some familiarity with getting around in the Unity editor, working with Unity UI, and the basics of the Dialogue System. (See Dialogue System tutorials.) A Setup.txt file explains how it was set up. If you have any questions about it, or about customizing your own UI, just let me know!

[Ashrane]

Thanks for your unitypackage.
It helps me too !
Sorry for my question, I'm new in Dialogue System :
I would like to have only one portait name.
Indeed, in your example, the names of the characters appear on the characters.
I would like it all to arrive in my name box and the name changes when the person speaking changes.
Could you help me, please ?

Sorry for my English, I'm French.

[Tony Li]

Hello,

Welcome to the Dialogue System!

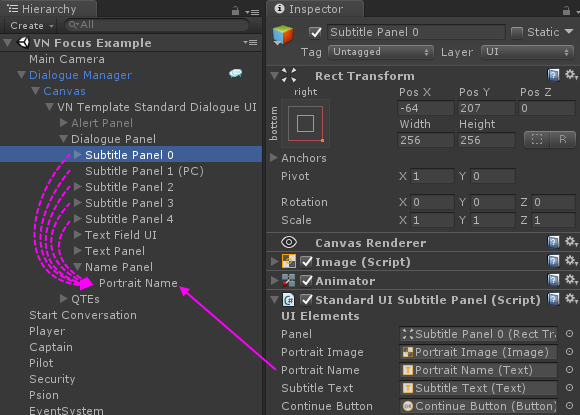

The VN Focus UI Example (linked above) uses one shared name box for all characters. To do this, each subtitle panel points to the same Text element:


[Ashrane]

Oh, I understand how it works ! Thanks a lot.

[Tony Li]

Glad to help!

[ioruko]

Hi! Here's an example: VNFocusUIExample_2018-10-18.unitypackage

It looks like this:



It assumes some familiarity with getting around in the Unity editor, working with Unity UI, and the basics of the Dialogue System. (See Dialogue System tutorials.) A Setup.txt file explains how it was set up. If you have any questions about it, or about customizing your own UI, just let me know!

Hello, sorry to bother you in an old post, I'd like to ask if there is a method to darken the sprites while unfocused instead of turning down the alpha?

[Tony Li]

Sure, instead of animating the alpha value, animate the RGB color values toward zero.

[ioruko]

Oh, thanks for your super fast reply! I'll look up how to do it, I'm new to Unity in general.

[Tony Li]

Some of the UIs focus and unfocus by animating the Alpha value of a component called Canvas Group. The Canvas Group component applies an alpha (transparency) value to the UI elements in its hierarchy. If Alpha is 1, it's fully opaque. If Alpha is zero, it's fully transparent. The animations were created in the Unity editor's Animation window.

The portrait images have an Image component. Image components have a Color value, that is normally solid white, meaning it tints the sprite with full color (full red, full green, full blue, full opaque alpha). If you change the change the Color's red/green/blue values from the maximum 255 to the halfway point of 128, it will darken the image by 50%. You can use the Animation window to create a new animation that changes the Color's values instead of the Canvas Group's Alpha.
