How can I have Multiple Body Texts in Quest HUD?

[hamzahgamedev]

Hello, I want to show multiple Body Texts in Quest HUD, i.e if the quest have more than 1 goals, I want to show each goal one after another instead of a goal just getting updated abruptly.
Also, i want to enable a "Green Tick" game Object whenever that goal is completed..

Here's the demonstration of how I want my UI to look. Any help will be much appreciated.
Thanks!

[Tony Li]

Hi,

In your example screenshot, there would be 2 nodes: "speak with people" and "report to mayor". At the point of the screenshot, "speak with people" would probably be in the True state, and "report to mayor" would be Active. So you'd add the body text to the "speak with people" node's True state > HUD Text and the "report to mayor" node's Active state > HUD Text.

To include a checkbox, you could either use TextMesh Pro and <sprite> tags, or you could use Icon content instead of Body Text content. TextMesh Pro might be simpler, so you don't need to modify the Icon content template as much.

[hamzahgamedev]

so i guess what i want is that the quest HUD should enable the "complete body text" whenever the goal is complete..
so is there a way to show the "complete body text" when the goal is complete ?? Thanks

[Tony Li]

Hi,

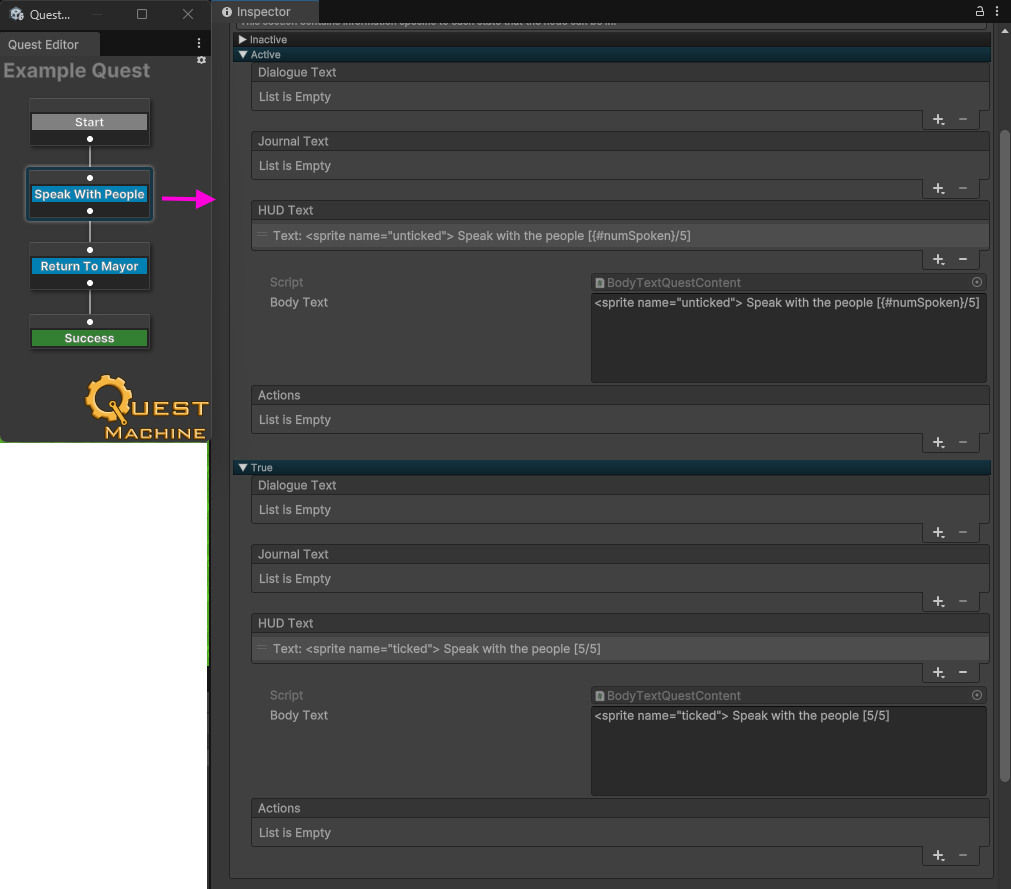

You can set it up like this:


The "Speak with people" node has HUD text for when it's in the Active state and when it's in the True (completed) state.

It assumes:

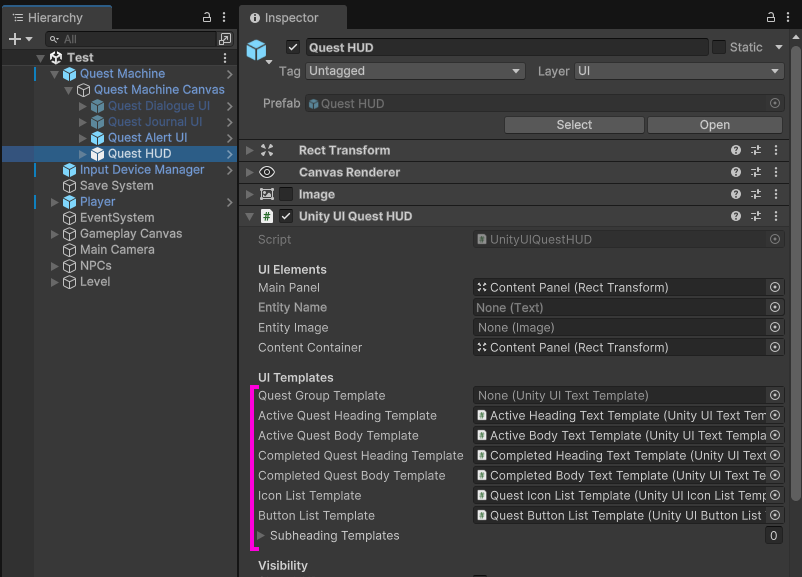

1. You've switched to TextMesh Pro. In the Welcome Window, tick Enable TextMesh Pro. Then replace your text templates with TextMeshProUGUI components:


2. You've added sprites in TextMesh Pro named "ticked" and "unticked" for the ticked checkbox image and unticked checkbox image.
