[Solved] Changing Portrait Image (for Expression) as per Dialogue

[harshad.asawale]

I got 2 queries related to this.

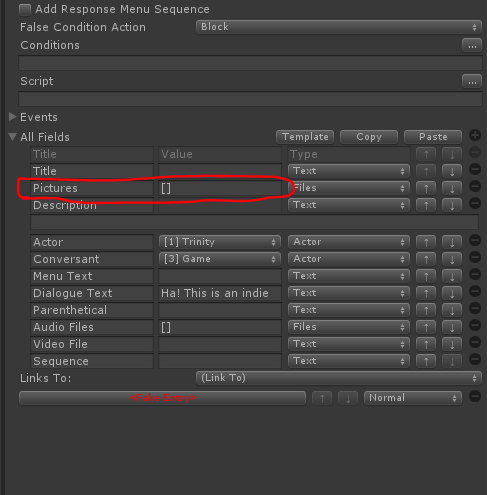

1] How do we fill the pictures field for a dialogue entry? Is it the asset persistent file path? (Please check the attachment)
2] I want to change the portrait image in the PC / NPC subtitle panel, according to the Picture specified for the dialogue entry. Which is the easiest way to achieve this? Fiddling with the existing code? Or using an animator which can be linked to the dialogue system?
Please guide at least on a gross level, if the procedure is too lengthy.

[Tony Li]

Hi,

1] How do we fill the pictures field for a dialogue entry? Is it the asset persistent file path? (Please check the attachment)

Ignore the Pictures field. It's a holdover from Chat Mapper. The Dialogue System's internal data structure is based on Chat Mapper, a popular third party branching conversation application. By default, a dialogue database has several Chat Mapper fields -- including Pictures, Parenthetical, and Audio Files -- that are not used by the Dialogue System. They exist only to make it easier to import and export to Chat Mapper if you want to do that. You can delete these fields from the template, with the option to delete them from all dialogue entries.

2] I want to change the portrait image in the PC / NPC subtitle panel, according to the Picture specified for the dialogue entry. Which is the easiest way to achieve this? Fiddling with the existing code? Or using an animator which can be linked to the dialogue system?
Please guide at least on a gross level, if the procedure is too lengthy.

In the Actors section, assign portrait images to the actor. You will notice that each portrait image is assigned a number. In the dialogue entry's Dialogue Text, use the [pic=#] markup tag, where # is the image number. For example, if image 2 is a happy image, you could set the Dialogue Text field to:

• Dialogue Text: "I'm so happy! [pic=2]"

This will use the image for that dialogue entry only. If you want to permanently change the portrait number, use the SetPortrait() sequencer command. (More info on sequences: sequences, tutorials)
