Animated Subtitle Panel Question

[xinhuanmi]

Hi,

Sorry if this has been answered before.
I'm trying to create an animated subtitle panel using 3 sprites, and I've added an animator component to the Subtitle Panel.
However, after the dialogue line ends or a response menu opens, the subtitle panel remains visible.
Should I link the Animator Controller to the [StandardUISubtitlePanel] and add a trigger, or is it already set up for this?

Thanks!


[Tony Li]

Hello,

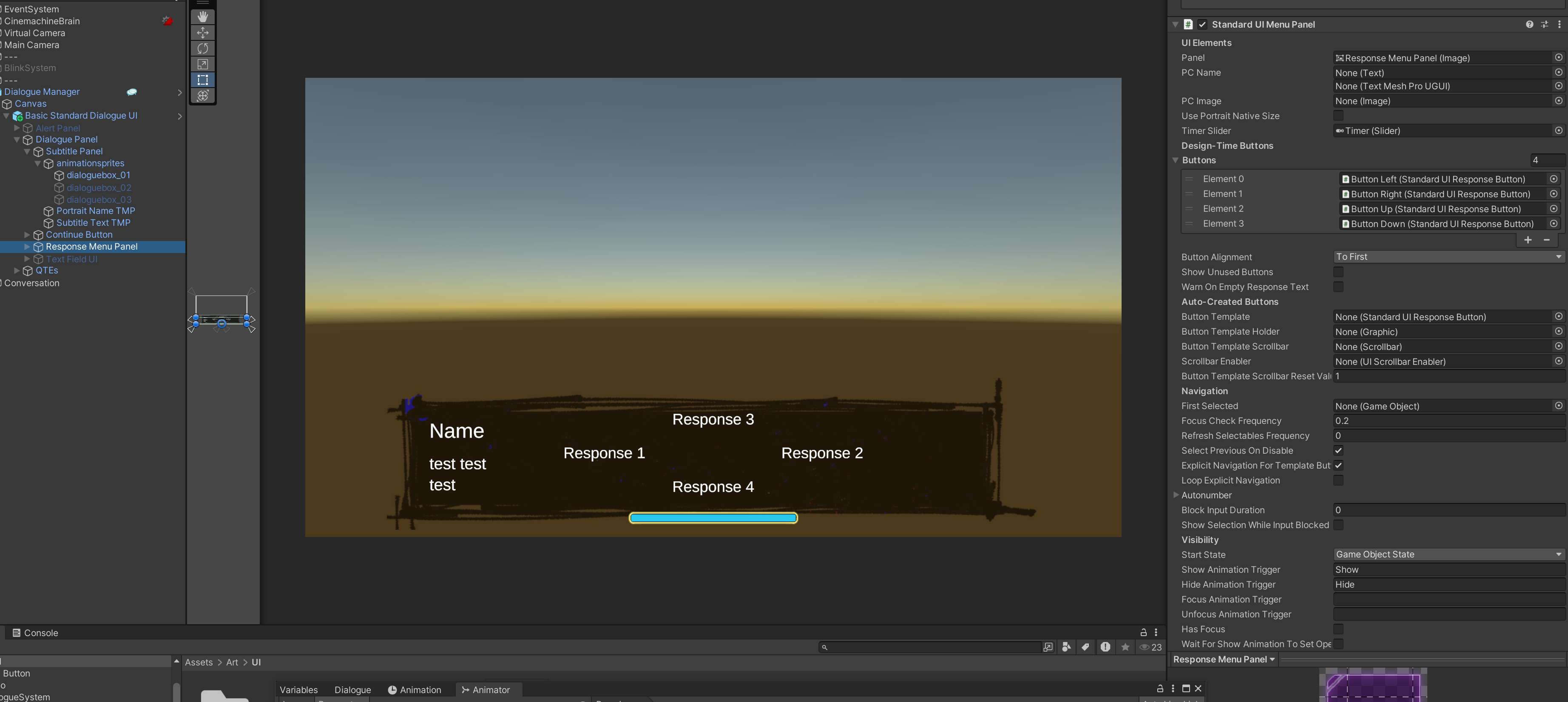

Please try this: Inspect the subtitle panel and/or response menu panel. Set the Visibility dropdown to Until Superceded.

[xinhuanmi]

Hi Tony, thank you for your reply!

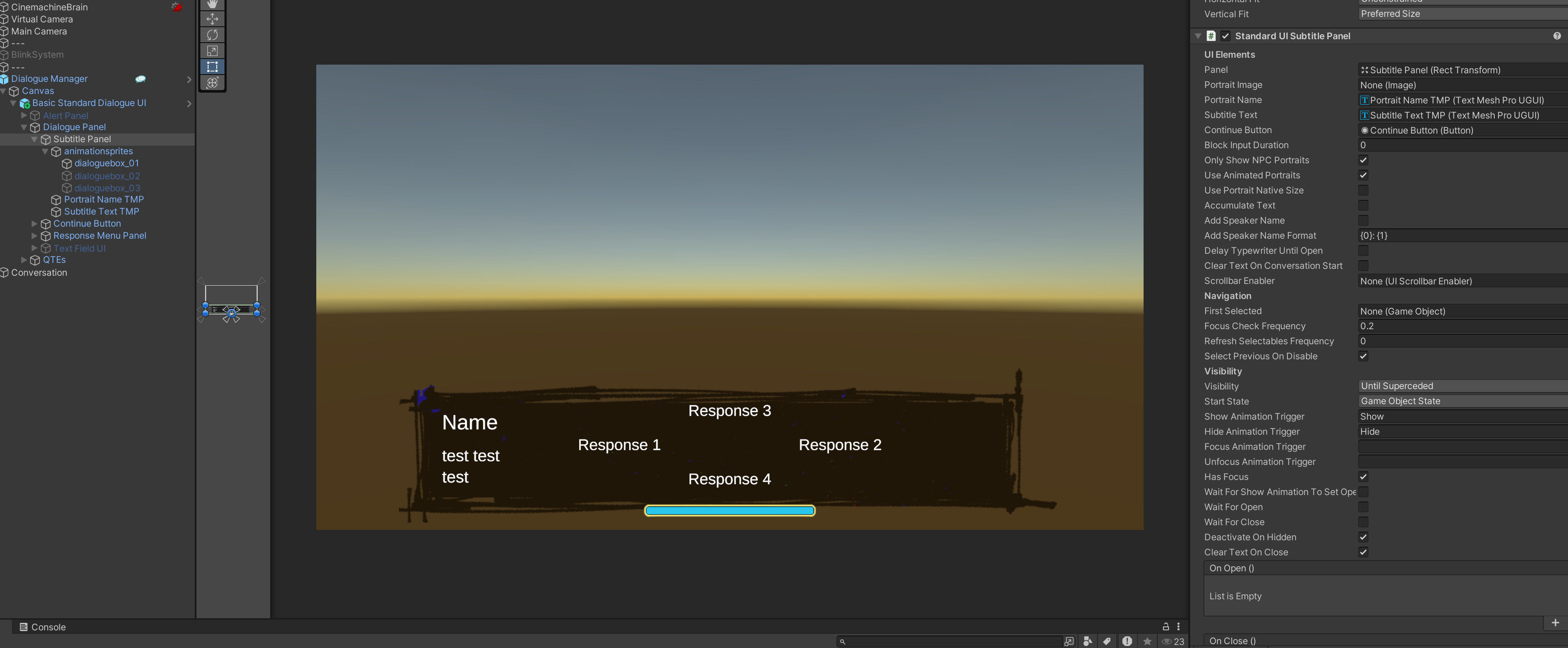

I set the Subtitle Panel → Visibility dropdown → Until Superceded.
but it still won't work.

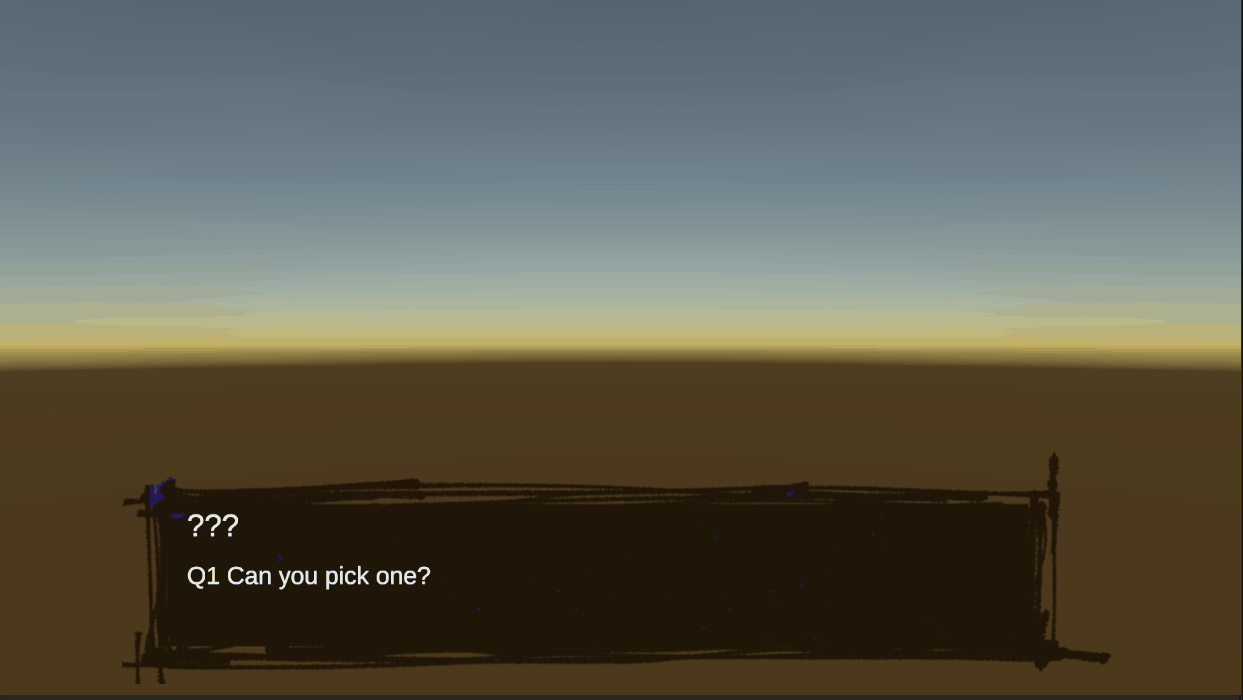

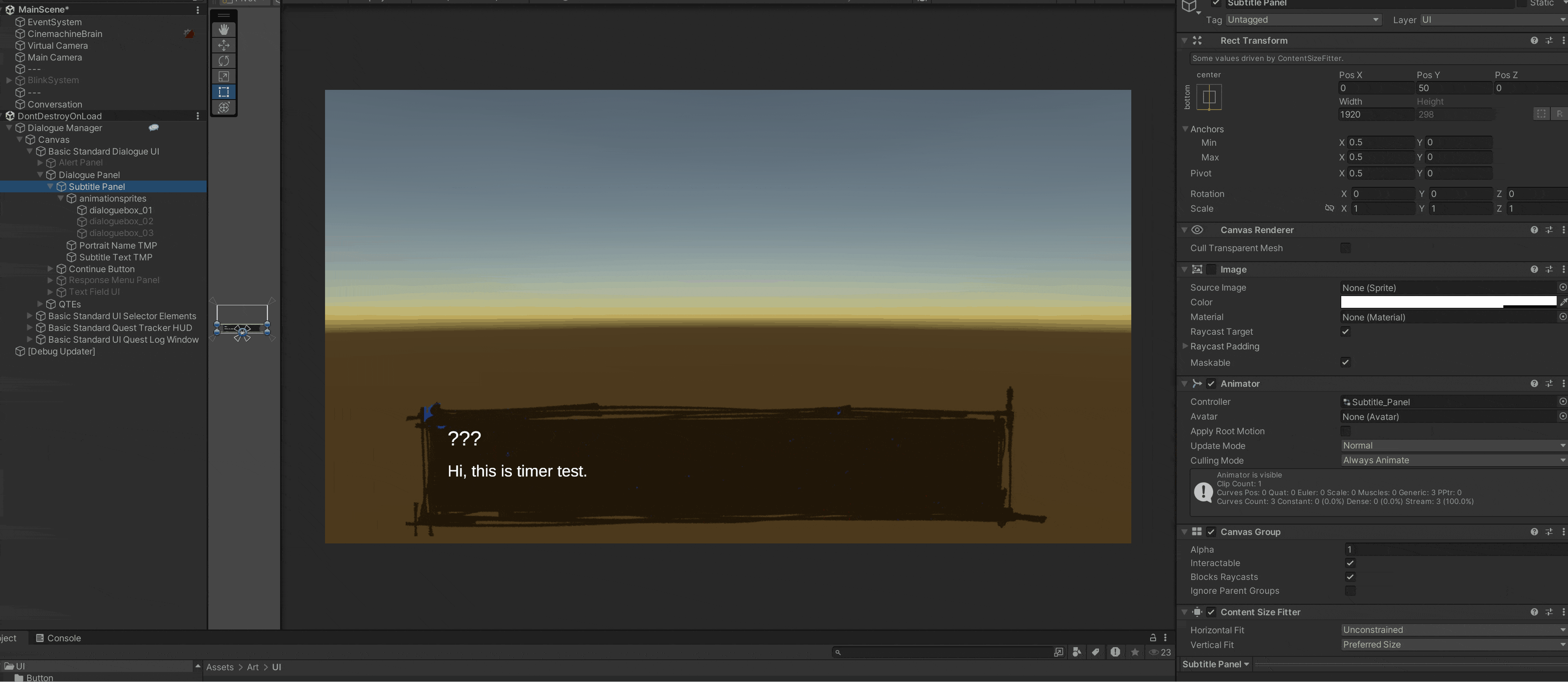

Here is the gif for the scene.




Thank you

[Tony Li]

Try setting Visibility to Until Superceded Or Response Menu. (Or Until Superceded Or Actor Change Or Response Menu.)

[xinhuanmi]

Hi,
I tried to change it to
[Until Superceded Or Actor Change]
[Until Superceded Or Actor Change or Menu]
It remains the same.

[Tony Li]

When the subtitle panel's Visibility dropdown is set to [Until Superceded Or Actor Change or Menu], the subtitle panel will deactivate itself when the conversation shows a response menu panel.

If this is not the behavior that you see in your scene, make sure you've set the correct subtitle panel. For example, if you've assigned a dialogue UI prefab asset to the Dialogue Manager's Display Settings > Dialogue UI field, make sure you change the prefab asset, not any instance in the scene.

If that doesn't help, would you please send a reproduction project to tony (at) pixelcrushers.com?

[xinhuanmi]

Hi,

I figured it out!
I added another [Animator]in animationsprites(which contains 3 sprites for the animation)
and left the [Animator]in Subtitle Panel empty but set it enabled.
Don't know why but it worked like what I expected.

Thank you so much for your fast response!!




[Tony Li]

Hi,

I'm glad you got it working!
