Dialogue entries not loaded correctly (with AC plugin)

[Tony Li]

If you can pare it down to something smaller that still reproduces the issue, that would be fine. In either case, here are the instructions for packing it up: reproduction project

Or, if you can write a list of steps to follow, that would be fine instead of a reproduction project. Example:
1. Create new project.
2. Import AC & DS.
3. etc.

If none of that is possible, I can put together a debug version of Remember Dialogue System that should be able to log additional information that might help you identify the problem.

[Adventure4Life]

I think in my tight deadline and other bugs to fix a debug version might works best.
please tell me what I need to do.

[Tony Li]

I'll put it together and send it to you within the next 4 hours.

[Tony Li]

Hi,

I thought of one more thing: Is the Adventure Creator Bridge's Include SimStatus checkbox ticked?

Some users requested this extra checkbox to be able to turn off AC's saving of SimStatus. It overrides the value of the Dialogue Manager's 'Use SimStatus' checkbox.

Here's the debug version of RememberDialogueSystem:

DS_AC_RememberDSDebug_2020-10-01.unitypackage

It will import into a folder named Assets/Test.

Temporarily replace your RememberDialogueSystem component with this RememberDialogueSystem_DebugVersion. Then save and load.

When you save, you'll see something like this:

Code: Select all

Pixel Crushers Save System is saving Dialogue System state:
; Conversation[1].SimX="1;o;2;d;3;o;4;o;0;d"; Conversation[2].SimX="1;d;2;u;3;u;0;d";

When you load, you'll see something like this:

Code: Select all

Pixel Crushers Save System is restoring Dialogue System state from Adventure Creator:
; Conversation[1].SimX="1;o;2;d;3;o;4;o;0;d"; Conversation[2].SimX="1;d;2;u;3;u;0;d"; Conversation[3].SimX="1;u;2;u;3;u;4;u;5;u;6;u;0;u"; StatusTable = ""; RelationshipTable = "";

I'll break down the first one in the example above, which is for the conversation with ID 1:

Code: Select all

Conversation[1].SimX="1;o;2;d;3;o;4;o;0;d";

The numbers are dialogue entry IDs. The characters 'u', 'o', and 'd' mean:

• u: Untouched
• o: Was Offered
• d: Was Displayed

The important thing to check is that the values look the same for the save and the load.

[Adventure4Life]

Thank you!

Include Sim Status is ticked, is that might cause the problem?

[Tony Li]

Since you're using SimStatus, the Adventure Creator Bridge's Include SimStatus checkbox should be ticked.

[Adventure4Life]

Understand. Will check the debug now

[Adventure4Life]

Okay here's what I saw:

scenario #1
1. conversation start, I saw all entries exist
2. select one entry with only condition:
Dialog[thisID].SimStatus ~= "WasDisplayed" => entry dissapear from conversation
3. exit conversation using 'exit' entry
4. save the game
specific entry in log marked - 'offered' (which should be 'displayed')
5. load game
specific entry in log marked - 'offered'
6. conversation start, I saw again the entry
select again => entry still exist! (it should dissappear)
7.save game specific entry in log marked - 'displayed'
8.load game specific entry in log marked - 'displayed'
9. conversation start, again see the entry

scenario #2 (which I'm not sure if it's relate to save-load but still related to SimStatus)
1. conversation start, I saw all entries exist
2. select one entry with only condition:
Dialog[thisID].SimStatus ~= "WasDisplayed" => entry still exist
3. try select again entry still exist!


From the first scenario it look like load works fine
and I think the SimStatus in the memory is not saved correctly

[Tony Li]

Hi,

Let's focus on this:

scenario #1
1. conversation start, I saw all entries exist
2. select one entry with only condition:
Dialog[thisID].SimStatus ~= "WasDisplayed" => entry dissapear from conversation
3. exit conversation using 'exit' entry
4. save the game
specific entry in log marked - 'offered' (which should be 'displayed')

Please double-check that you're looking at the right conversation ID and dialogue entry.

For instance, in the example I provided above, the SimStatus info for one conversation is:

Code: Select all

Conversation[1].SimX="1;o;2;d;3;o;4;o;0;d"

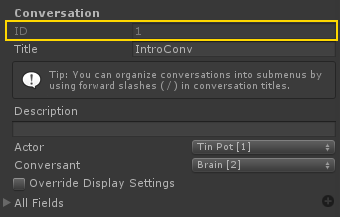

Conversation[1] means the conversation ID is 1. I can confirm it in the Dialogue Editor:


The dialogue entry IDs are:

• 1 = Was Offered
• 2 = Was Displayed (This is the one I selected from the response menu.)
• 3 = Was Offered
• 4 = Was Offered
• 0 = Displayed (The <START> node.)

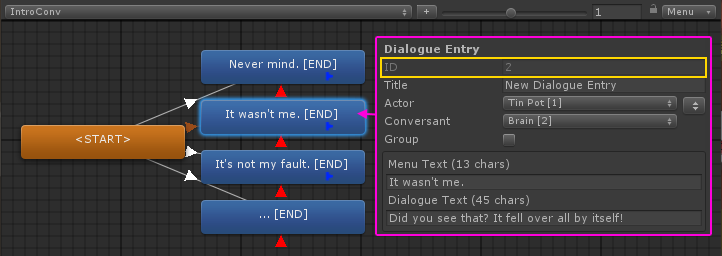

I can also confirm the dialogue entry ID in the Dialogue Editor:


Does that help?


Also, are you using multiple databases? If so, did you use the Unique ID Tool?

Or is it possible that you manually modified internal ID numbers at some point? Maybe two conversations or dialogue entries have the same ID?

[Adventure4Life]

Yes, I do understand and follow conversation and entry id exactly how you mentioned.
I'm using only one database (and I see auto-backup created as well)

Again, I double check and do scenario with screenshots (btw, each time I get different result!)

here's scenario:
1. conversation id 10 start, I saw all entries exist

2. exit conversation using 'exit' entry - id 22
3. saved the game - log appear to be correct

4. conversation id 10 start, select entries - 4, 9, 12,13 - all entires dissapear in dialog as expected
5. exit conversation using 'exit' entry - id 22
6. load the previous game (the one before all entries selected) - log appear to be correct

7. conversation id 10 start, I saw entry 13, 22 exist - instead of seeing all entries!!! (4, 9 , 12, 13, 22)


PS
I rerun SAME scenario
at the end I see only enty 22 - so it's REALLY not consistent.
